Product Name：Mercury-free 3.33mV/V ±0.5% melt pressure transducer

Product description：

Product Brief：

Introduction

SAND manufactures a complete series of standard and tailor-made melt pressure sensors with different filling materials for various extrusion applications at processing temperature of up to 550℃. SAND sensors feature their proprietary properties of non-mercury technology and upgraded functions which are absolutely user-friendly specifically for food and medical industries and the hazardous environments of the extrusion and polymer processing industries. Optional auto-zero function for local or remote configuration and integrated safe relay switch for excess pressure protection. SAND sensors are also interchangeable to Dynsico,Gefran and Gneuss etc.

Performance Index：

FEATURES

Better than 0.5% accuracy
Internal 80% shunt calibration
Various diaphragm materials and coatings available (Anti-corrosion & Anti-abrasion coatings)
Optional Auto-zero function
Optional safe realy switch
CE certification and RoHS compliant
Various filling materials available

SPECIFICATIONS

Pressure Range	0~50 to 2000bar(0~750 to 0~30000psi)
Pressure Units	PSI, Bar, Mpa or Kg/cm2
Accuracy	±0.5% FS
Repeatability	±0.2% FS
Input excitation	10VDC ( 6 ~ 12 VDC ) for mV/V, 24VDC (9~36 VDC) for mA or Voltage
Output Signal	3.33mV/V, 3.0mV/V, 4~20mA, 0~10V
Maximum diaphragm temperature	662 F (350 °C) for oil filling 752 F (400°C ) for mercury filling 1022 F (550°C) for liquid metal filling
Zero shift due to temperature change	≤0.15 MPa/100°C
Insulation Resistance	≥500MΩ/500VDC
Maximum Overload Pressure Rating	1.5 x FSO (<1000bar) 1.2 x FSO (>1000bar)
Process connection	1/2"-20UNF, M10x1.5, M12x1.5, M14x1.5, M18x1.5, M22x1.5 etc.
Electrical Connection	5PIN 6PIN 7PIN 8PIN
Internal Shunt Calibration	80% FSO
Measurement principle	4-arm bonded foil strain gage Wheatstone bridge
Temperature Sensor (optional)	E,J,K,S type or Pt100

Model Format：

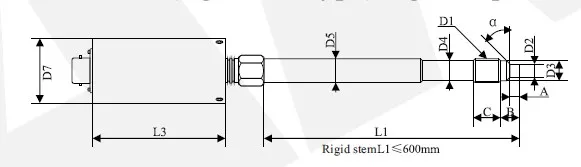

Rigid stem type

PT1

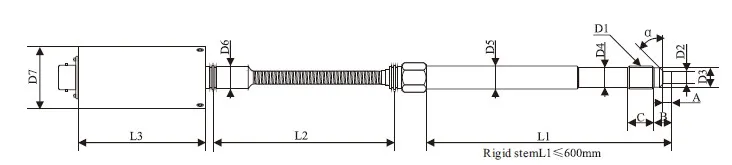

Flexible stem type

PT2

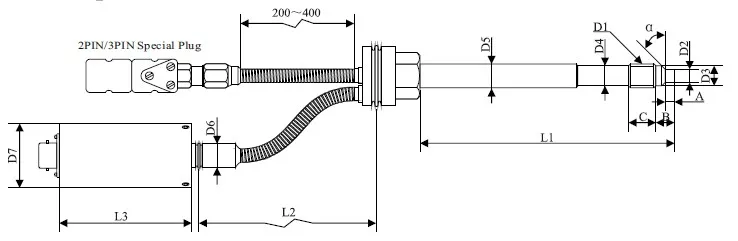

Flexible stem & Temperature type

PT3

Electrical connection

ORDER FORMAT
